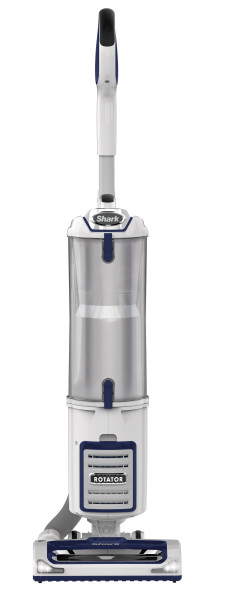

NV90 Series Shark Rotator® Professional XL - FAQs

Place the vacuum body onto the floor nozzle.

Slide the handle into the top of the vacuum body and secure with the provided bolt.

Insert extension wand through tool caddy and lower coupling.

Insert the crevice tool and dustion brush into the accessory clips. Wrap the hose around lower hose clip, rest in hose cradle at top of the unit and attach to wand.

To clean with the flexible hose, stand the vacuum upright, and remove the hose from the top of the extension wand. Add a cleaning accessory to the end of the hose.

For more reach, remove the extension wand from the nozzle hose and attach it to the flexible hose. Attach a cleaning tool to the end of the wand.

To adjust the amount of suction power, slide the suction control button at the end of the flexible hose.

Filters may need to be cleaned if the vacuum stops picking up dirt, if airflow is restricted, or if you notice lighter or no suction. For optimal performance, clean filters regularly. Between cleanings, lightly tap filters over a trash receptacle to remove dust and debris as needed.

Rinse the pre-motor foam and felt filters every 3 months, or as needed.

• First, remove the dust cup to access the pre-motor filters.
• To remove the dust cup, press the release button next to the handle. Tilt the dust cup, and lift to remove.
• Remove the foam and felt filters.
• Rinse both filters with water only.
• Allow filters to air-dry completely (at least 24 hours) before reinstalling.
• Once dry, replace the felt filter first, followed by the foam filter.
• Reinstall the dust cup by placing the bottom of dust cup into the pod and then tilting until it clicks into place.

Rinse the post-motor HEPA filter every 12 months, or as needed.

• Pull the latch under the HEPA filter cover and lift off the cover.
• Remove the HEPA filter.
• Rinse with water only.
• Allow filter to air-dry completely (at least 24 hours) before reinstalling.
• Once dry, reinstall the HEPA filter.
• Reattach the HEPA filter cover until it clicks into place.

For optimal performance, empty the dust cup each time you vacuum, or when debris reaches the MAX FILL line.

• To remove the dust cup, press the release button next to the handle. Tilt the dust cup, and lift to remove.
• Hold the dust cup over the trash and press the bottom door release button on the front.
• Tap gently to empty contents.
• Close the dust cup door, pressing it until it clicks into place.
• If needed, turn the dust cup upside down over the trash and press the top door release button.
• Tap gently to remove contents. Clear debris from the cone-shaped screen.
• Wipe the interior of the dust cup clean.
• To reinstall, place bottom of dust cup into the pod and then tilt until it clicks into place.

Lay the vacuum flat to expose brushroll.  Check opening behind the brushroll for clogs. Clear the opening.  Clear the brushroll; use scissors to carefully cut away threads, hair or other debris that might be trapped in the bristles.

Our products are manufactured by our high-quality vacuum manufacturing partners in China

13 lbs

12.2" L x 13.3" W x 45.5" H

2.9 dry quarts

120 Volts

1200 Watts

10 Amps
